Type 1610-H2

~ 40 mm

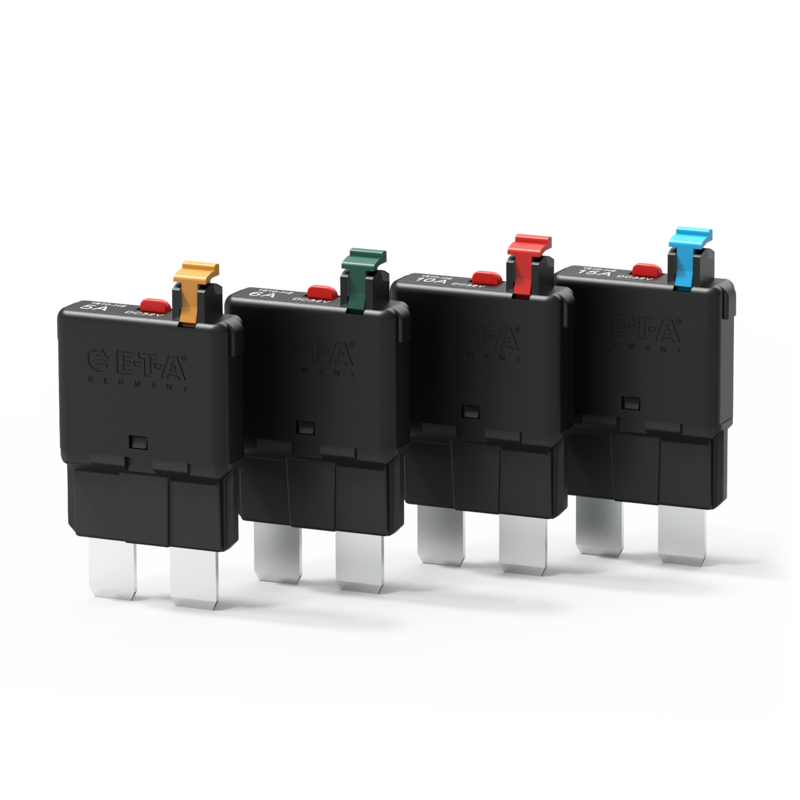

Typ 1610-H2 von E-T-A: Einpoliger, thermischer Kfz-Sicherungsautomat in sehr schmaler Bauform:

Description

Single pole, thermal automotive circuit protector with reset button and colour coded manual release in a very slim design. Also available with automatic reset for 12 V. Interchangeable in the connection area with blade fuse inserts in accordance with DIN 72581 Part 3, ISO 8820-3 Type C or ISO 10924 Form CB15.

Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses). Fast trip curve to ISO 10924 for direct replacement of automotive fuses.

Technical Data

Voltage rating	DC 32 V
Current ratings	from 5A up to 30 A
Number of poles	single pole
Mounting method	socket
Terminal design	blade terminals
Actuation	manual release push button
Auxiliary contacts	without auxiliary contacts
Water splash protection	without water splash protection
Illumination	without illumination
Typical life	300 operations at <= 50 A
Interrupting capacity I_cn	>= 3 break operations at 150 A, or >= 1 break operation at 2,000 A

Accessories

Order number	Description
12-P10/-J20/-A10	sockets
X21058801-04	Connector bus links -P10 01 = 1.5 mm² brown 02 = 2.5 mm² black 03 = 2.5 mm² red 04 = 2.5 mm² blue
X21115701/02	busbar for mounting socket 01 = with terminal 02 = without terminal

Order number

Description

12-P10/-J20/-A10

sockets

X21058801-04

Connector bus links -P10

01 = 1.5 mm² brown

02 = 2.5 mm² black

03 = 2.5 mm² red

04 = 2.5 mm² blue

X21115701/02

busbar for mounting socket
