Type 127
Last order: 30.06.2025
~ 68 mm
Description

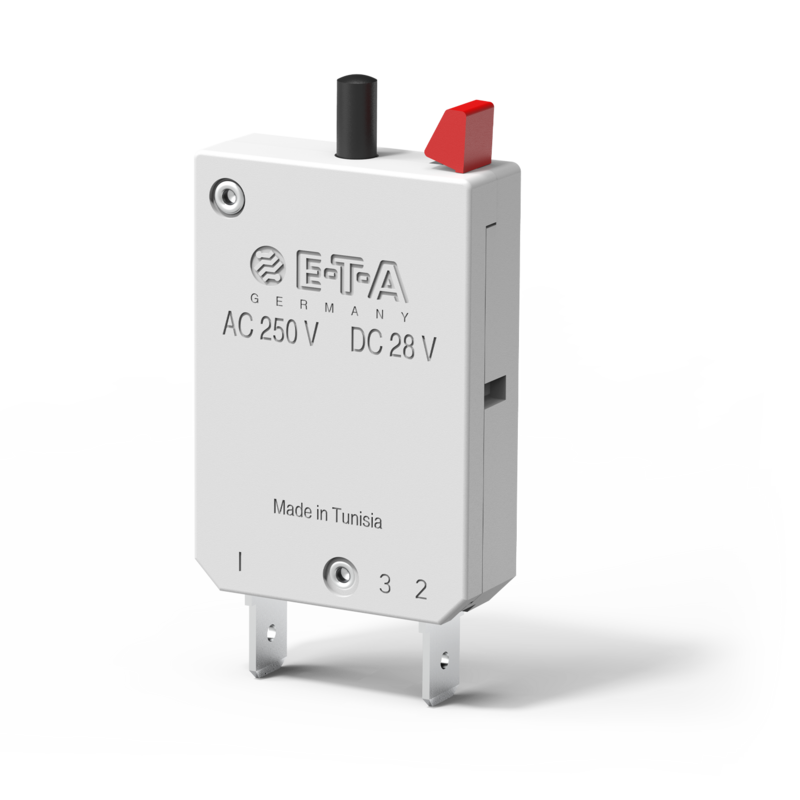

Single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934; M-type when fitted with optional manual release feature). Available in versions for plug-in or integral mounting, track mounting, or with a frame for snap-in panel mounting. The optional KF housing is particularly suited to high humidity and other damp conditions.
Approved to CBE standard EN 60934 (IEC 60934).
Last order: 30.06.2025
Last delivery: 31.12.2025
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.05 A up to 25 A |
| Number of poles | single pole |
| Mounting method |
flange rail mounting socket |
| Terminal design |
blade terminals screw terminals |
| Actuation |
manual release push button |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | without illumination |
| Typical life |
0.05...16 A 5,000 operations at 2 x IN, inductive 17...25 A 5,000 operations at 2 x IN, resistive |
| Interrupting capacity Icn |
0.05...2.5 A. 8 x IN 3...5 A: 20 x IN 6...12 A: 200 A 13...25 A: 400 A |
| Certificates | VDE, CSA, UL, CCC (Type 127-T.. approvals N/A) |
Accessories
| Order number | Description | |
|---|---|---|
| 10F-P10/-K10/-A10 |
mounting sockets |
|
| X21058801-04 |
Connector bus links -P10 01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue |
|
| X21058901/02 |
Connector bus links -K10 01 = 2.5 mm2 black
02 = 1.5 mm2 brown |
|
| Y30116601/02 |
busbar
01 = 4-way
02 = 2-way |
|
Applications
- Minus DC 48 V
- Telecom & Datacom
