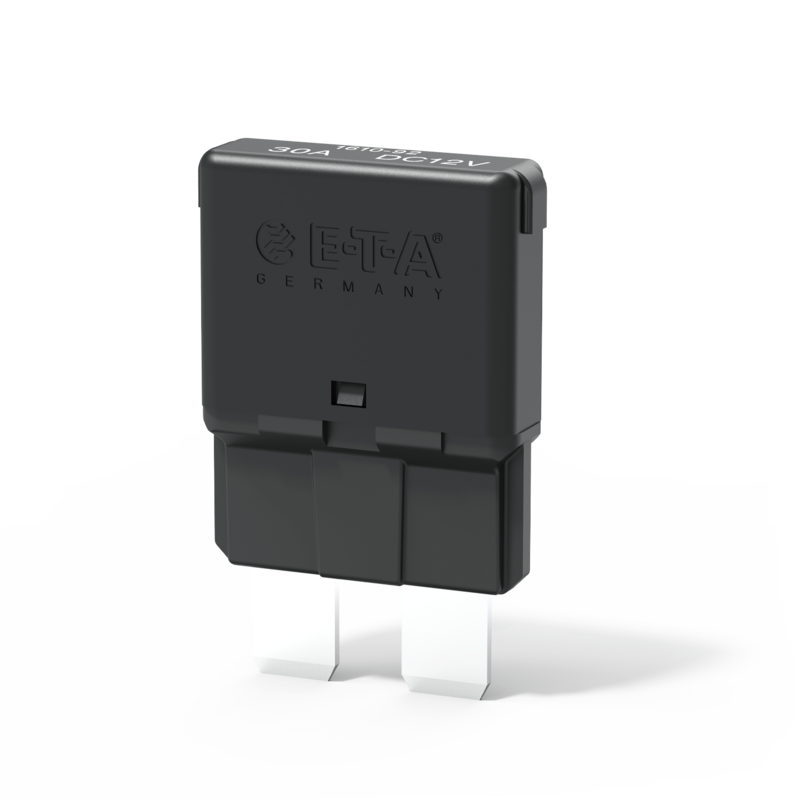

Single pole, thermal miniaturised circuit breaker designed for automotive applications
Miniaturised single pole autoreset cycling trip free thermal circuit breaker designed for automotive fuse block installation.
Extends the benefits of circuit breaker performance and convenience to applications which are cost critical. Standard trip curve to ISO 10924.
Version 1616 is available especially for the automotive industry (current ratings correspond to those of blade fuses). Fast trip curve to ISO 10924 for direct replacement of automotive fuses.
from 5 A until 30A
|Number of poles||single pole|
|Terminal design||blade terminals|
|Auxiliary contacts||without auxiliary contacts|
|Water splash protection||without water splash protection|
|Typical life||300 operations at <= 50 A|
|Interrupting capacity Icn||
>= 3 break operations at 150 A, or
>= 1 break operation at 2,000 A
|X 210 588 01-04||
Connector bus links -P10
01 = 1.5 mm2 brown
02 = 2.5 mm2 black
03 = 2.5 mm2 red
04 = 2.5 mm2 blue
|X 211 157 01/02||
busbar for mounting socket
01 = with terminal
02 = without terminal
