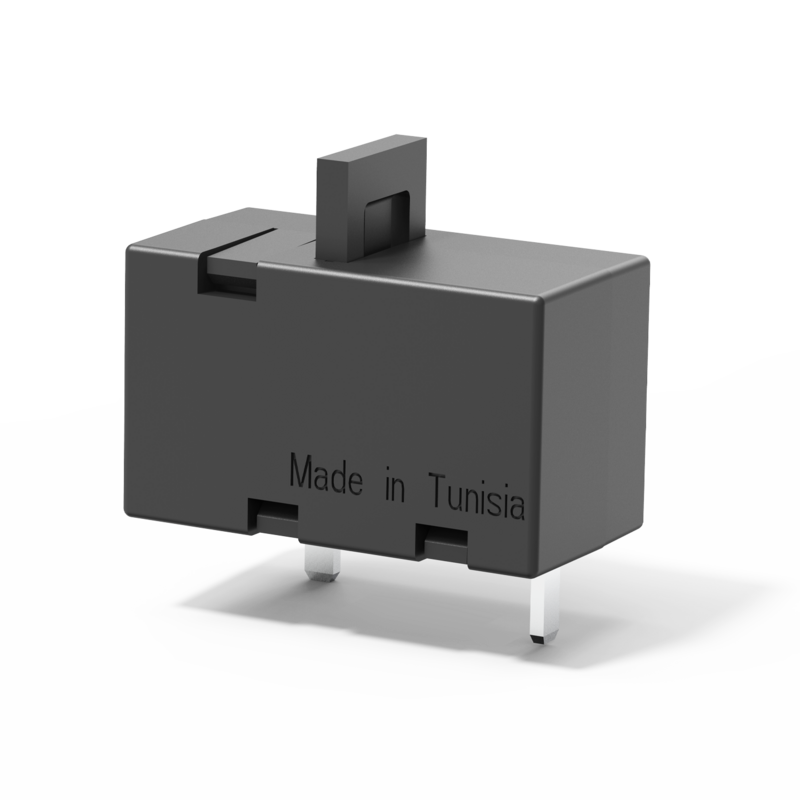

Type: 1410-L1

Description

~ 25 mm

Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934). Miniaturised construction minimises PCB real estate required. Largely temperature-insensitive.

Downloads

Data sheet
Declaration of Conformity330 K

Technical Data

Technical Data

Voltage rating
  • AC 240 V
  • DC 28 V (DC 50 V upon request)
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings  from 0.63 A to 10 A
Typical life 500 operations at 2 x IN, AC, resistive
500 operations at 2 x IN, DC, inductive
Interrupting capacity Icn 0.63...2 A: 12 x IN
2.5...8 A: 8 x IN AC, max 50 A
10 A: 6 x IN AC
3.15...10 A: 10 x IN DC
Number of poles
  • single pole
Mounting method
  • printed circuit board
  • integral mounting
Terminal design
  • solder terminals
Actuation
  • push button
Auxiliary contacts
  • without auxiliary contacts
Water splash protection
  • without water splash protection
Illumination
  • without illumination
Approvals VDE, CSA, UL

Accessories

Accessories

Applications

Applications

  • Medical Equipment
  • Telecom & Datacom
  • Minus DC 48 V
  • Household, Hobby & Garden Equipment
  • Lighting Equipment
