Type 106

~ 51 mm

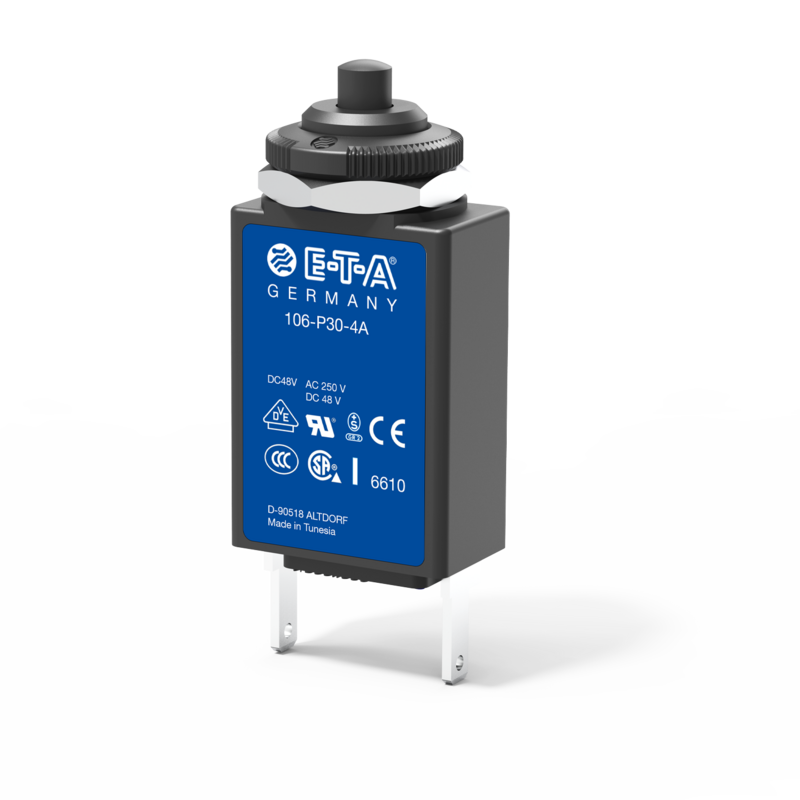

Typ 106 von E-T-A: Einpoliger, thermischer Schutzschalter in Kleinbauweise.

Description

Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934), threadneck mounting.

Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140-G.

Also available with XR38 Power Entry Module.

Technical Data

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
Current ratings from 0.05 A up to 10 A
Number of poles single pole
Mounting method threadneck
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 0.05...5 A: 3,000 operations at 2 x IN, inductive

6...8 A: 500 operations at 2 x IN, inductiv

10 A: 50 operations at 2 x IN, inductiv
Interrupting capacity Icn 0.05...8 A: 6 x IN (AC)

0.05...10 A: 6 x IN (DC)
Certificates VDE, SEV, CSA, UL

Accessories

Order number Description
X20128501

splash cover transparent

Y30711702

knurled nut

Y30019201

hex nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
