1610-21

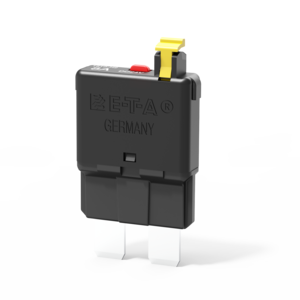

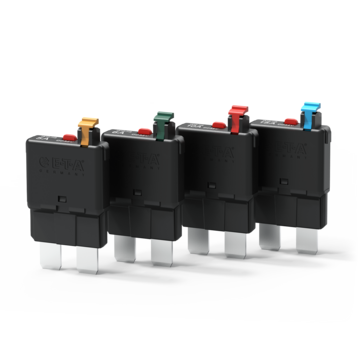

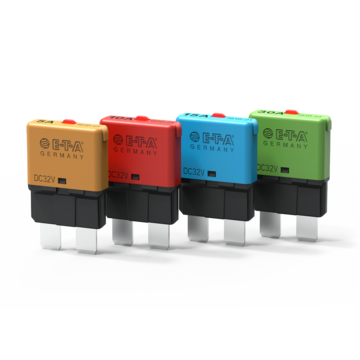

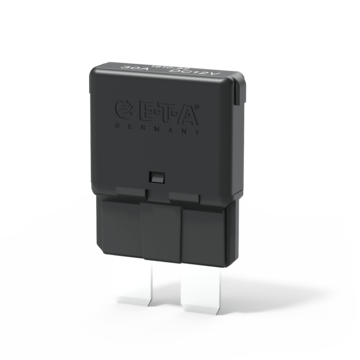

Automotive thermal circuit breaker,
colour-coded housing,
standard fuseblock mounting
Type 1160
~ 25 mm
Description
Thermal circuit breaker, with controlled self-resetting mechanism, specially suited to installation in inaccessible locations. Under overload conditions the circuit breaker contacts will open to protect the load circuit. A low current excitation circuit ensures that the contacts remain open thereby avoiding the hazards of automatic reset operation. The circuit breaker is reset by switching off the supply circuit for a short period. Class 2 device, contacts stay open until voltage is removed.
Type II to SAE J 553.
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 12 A until 30 A |
| Number of poles | single pole |
| Mounting method | socket |
| Terminal design | blade terminals |
| Actuation | without actuation |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination | without illumination |
| Typical life | 300 operations at 2 x IN |
| Interrupting capacity Icn | 200 A, L/R = 2.5 ms |
Applications
- Automobiles
- Commercial Vehicles
- Lighting technology
