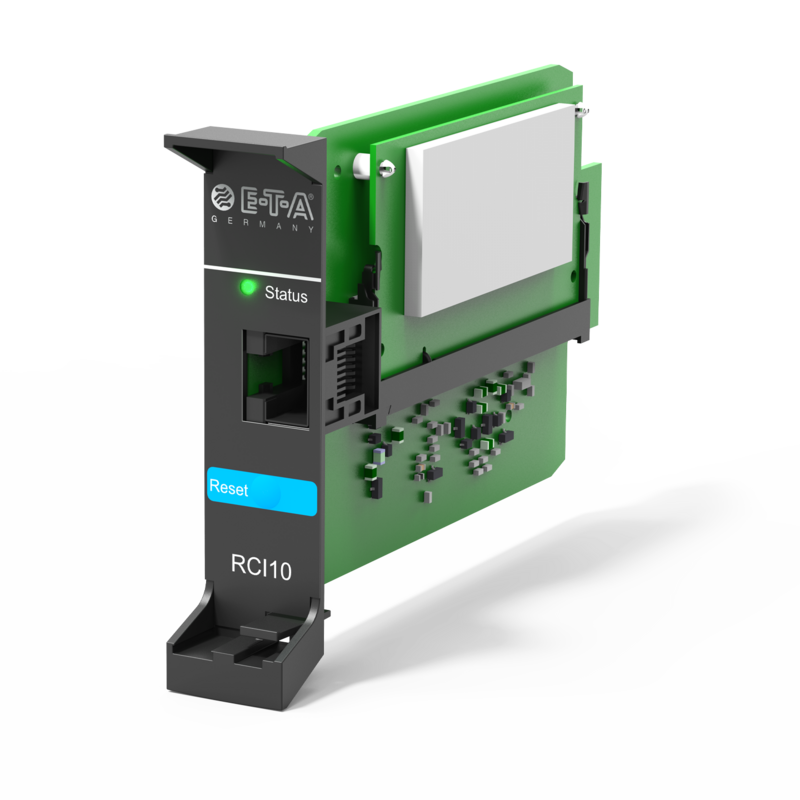

Type RCI10
Description
The RCI10 Remote Control Interface allows remote control and monitoring of the system and its connected loads, reduces maintenance costs and provides plants with unrivalled transparency. It integrates the ControlPlex® Rack system into the network surroundings and thus into the centralised corporate management system. The RCI10 has access to all installed ESX300-S circuit protectors by means of an internal bus system and can query or buffer individual measuring data, status conditions and fault indications and forward them to the superordinate control unit or accept commands from the control unit for controlling purposes. Major applications are in centralised control units of decentralised system, e.g. in telecommunications engineering. The Remote Control Interface type RCI10 can extended in operation (hot plug-and-play).
Benefits:
- Reduced maintenance time on site due to manual remote control and surveillance of loads
- Remote power reset of the application if in error mode
- Enhanced system availability through parameter-dependent / automated switching of loads
- Ease of integration into an existing centralised management system thanks to SNMP or remote control and monitoring via web browser surface
- Early detection of errors by continuous recording of measuring data
- Energy data recording for each connected load
Technical Data
| Nennspannung |
DC 20 V … DC 75 V |
|---|---|
| Anschlüsse extern |
Terminal external, RJ45 connector 10 / 100 Mbit/s |
| Status LED | red , green, blue |
| Umgebungstemperatur | -20...+60 °C (without condensation, cf. EN 60204-1) |
Applications
- Automation
- Infrastructure & Signalling technology
- Telecom & Datacom
