Type E-1048-8I...

66 mm

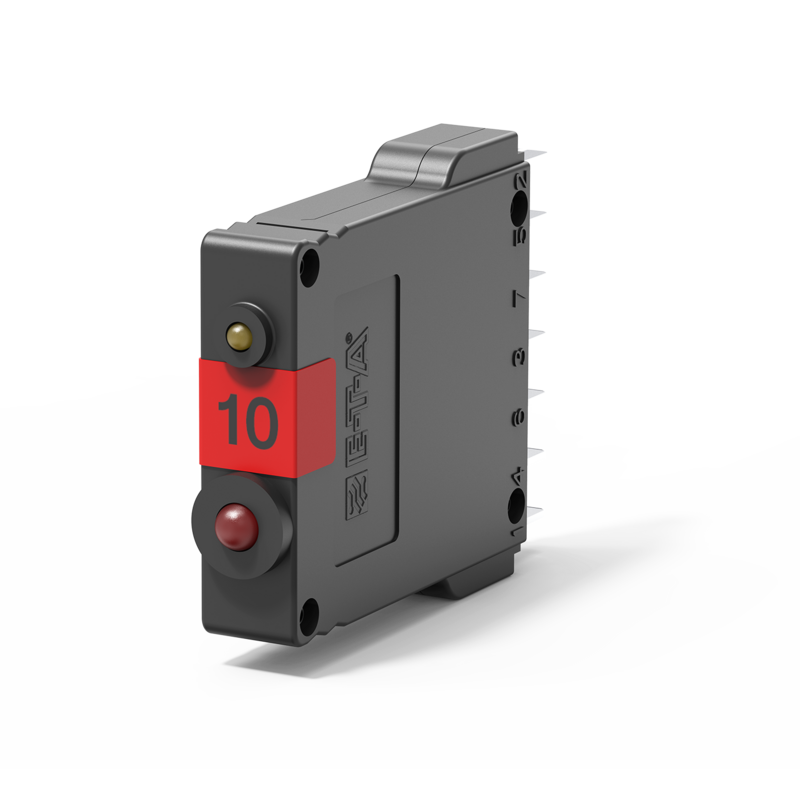

Typ E-1048-8I...- von E-T-A: Das Smart Power Relay E-1048-8I...- ist ein fernsteuerbares elektronisches Lastrelais.

Description

Data sheet

The Smart Power Relay E-1048-8I...- is a remotely controllable electronic load disconnecting relay with three functions in a single unit:

  • electronic relay
  • electronic overcurrent prodection
  • status indication



The 7 pin INLINE version is designed for use with various E-T-A terminal blocks, e.g. 17-P10-Si. A choice of current ratings is available from 1 A through 10 A. An operating voltage range of DC 9...32 V allows the connection of DC 12 V and DC 24 V loads.

Technical Data

Voltage rating DC 12 V/DC 24 V
Operating voltage DC 9...32 V
Number of poles 1-pole
Signal outputs control signal AS and
group fault signal SF
transistor output, plus switching

analogue output 0...5 V
Status indication control signal AS
group fault signal SF
Mounting method rail to
EN 50 022-35x7.5
when used with socket 17-P10-Si (accessory)

Accessories

Order number Description
17-P10-Si/-20025

sockets
17-P70-Si/-20025

sockets
23-P10-Si

socket
63-P10-Si

socket
X20040901

adapter for socket 16 for

track mounting
X21058801-04

Connector bus links -P10

01 = 1.5 mm2 brown



02 = 2.5 mm2 black



03 = 2.5 mm2 red



04 = 2.5 mm2 blue
X21115701/02

busbar for mounting socket

01 = with terminal



02 = without terminal
Y30050402

mounting clip
Y30058103

retaining clip for socket
Y30058111

retaining clip for socket
Y30382401

insulation sleeving for busbar
