ControlPlex® System CPC12

Transparency through web server and fieldbus connection

The requirements of machine and plant construction regarding machine uptime and a consistently high production quality are increasing. Stable processes are based on a reliable and transparent DC24V protection and power distribution system.

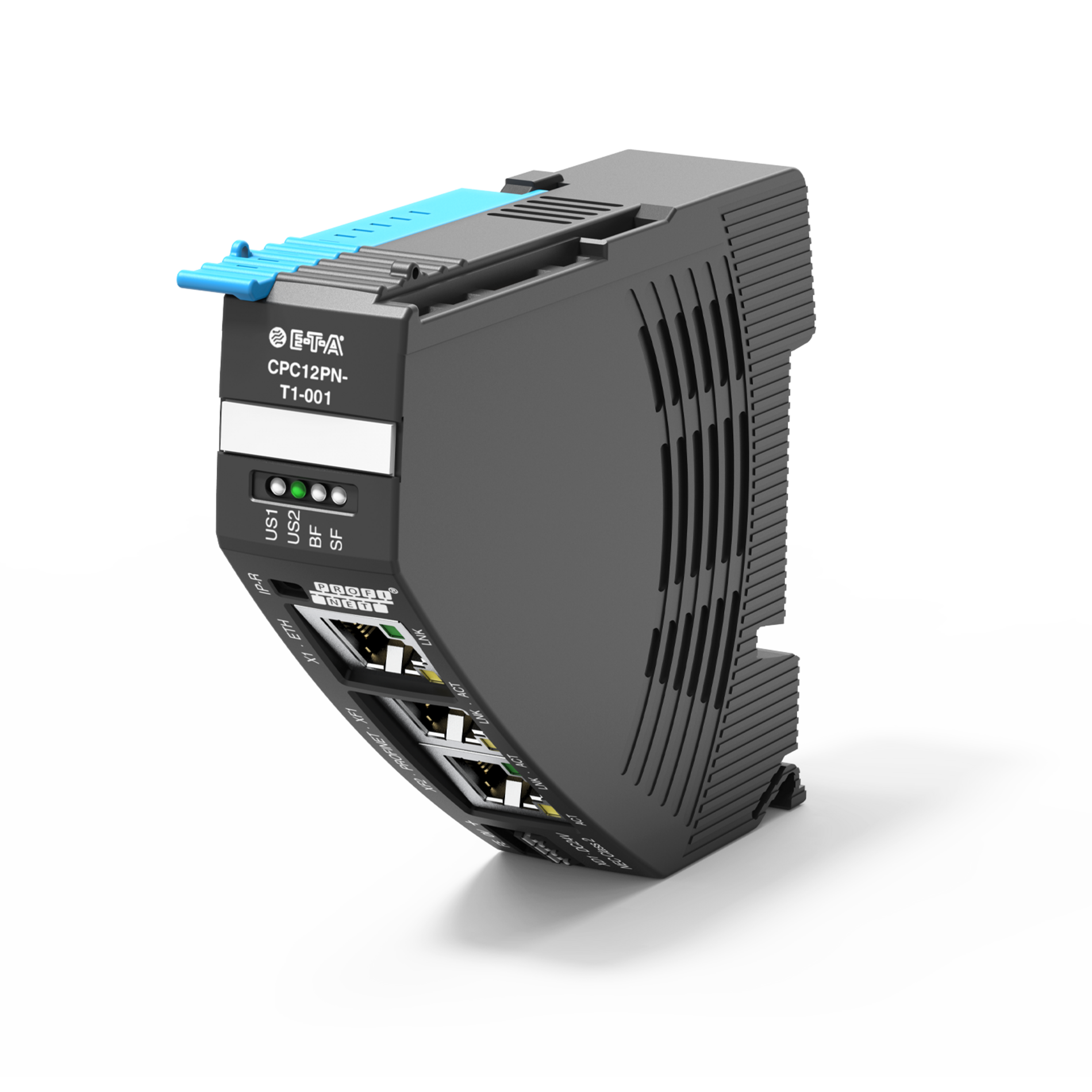

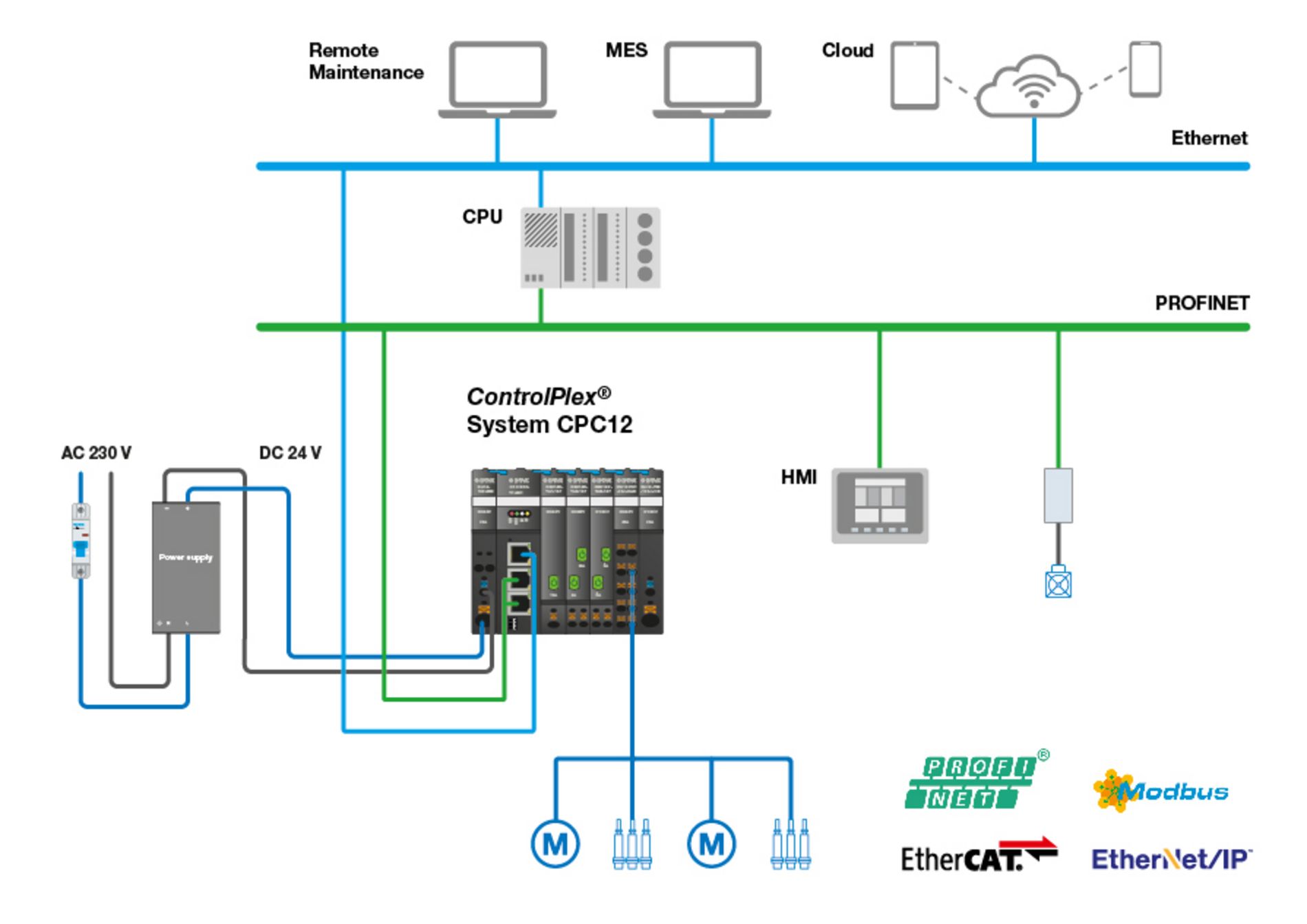

E-T-A’s CPC12 bus controller has a separate DC24V power supply and allows independent supply of the circuit protectors. It records all status information and measuring values. These data are visualised with the internal web server. Via the field bus interface, the data are also made available to the superordinate control systems.

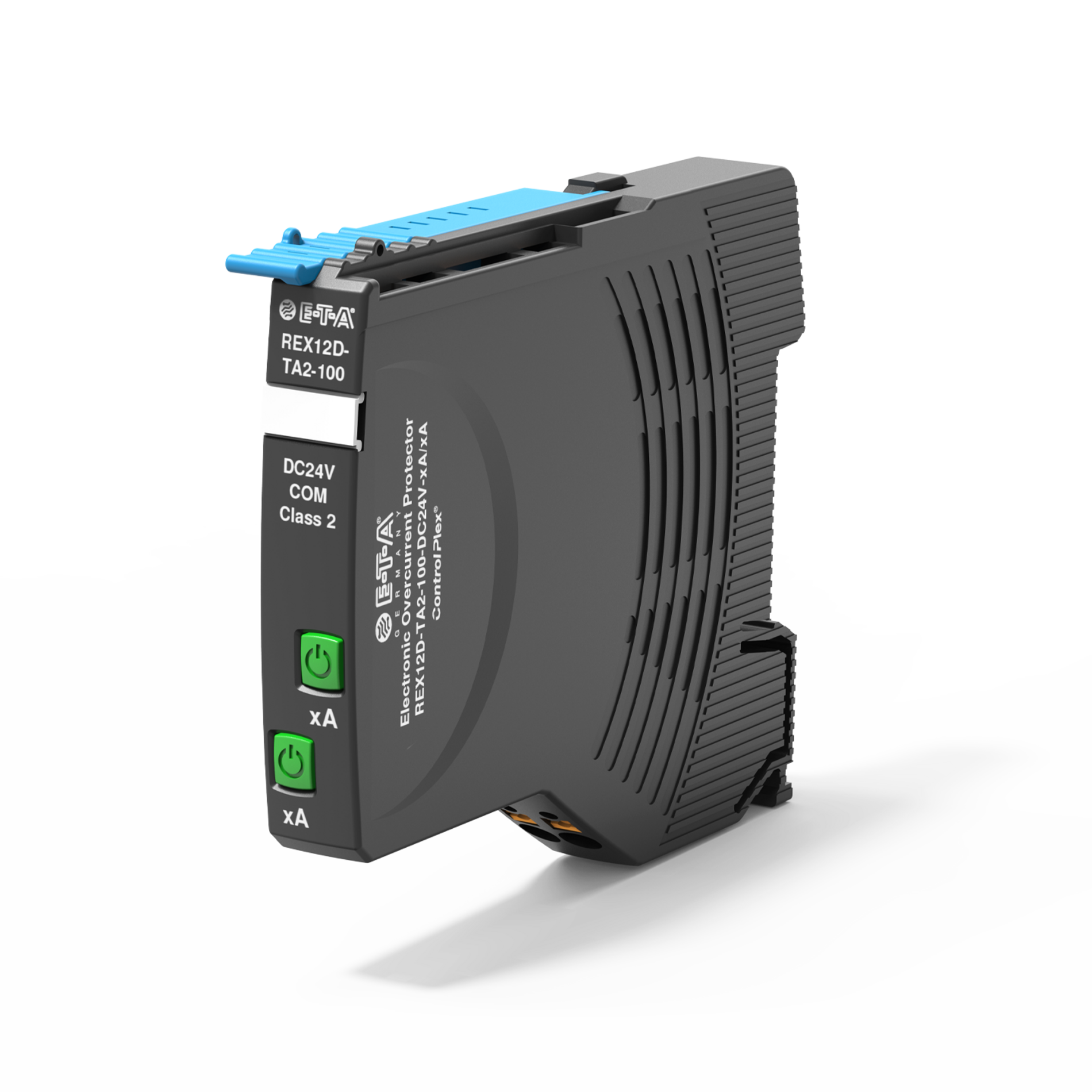

E-T-A’s REX12D system in combination with the CPC12 bus controller was designed specifically for the requirements of the machine construction and process control industry. The REX12D modular power distribution system combined with the CPC12  bus controller meets all requirements.

  • Maximises plant and machine  uptime through clear failure detection, high transparency and remote diagnosis

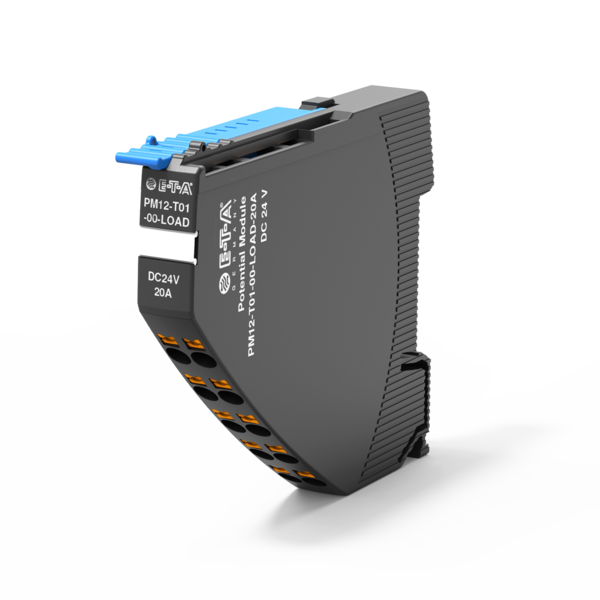

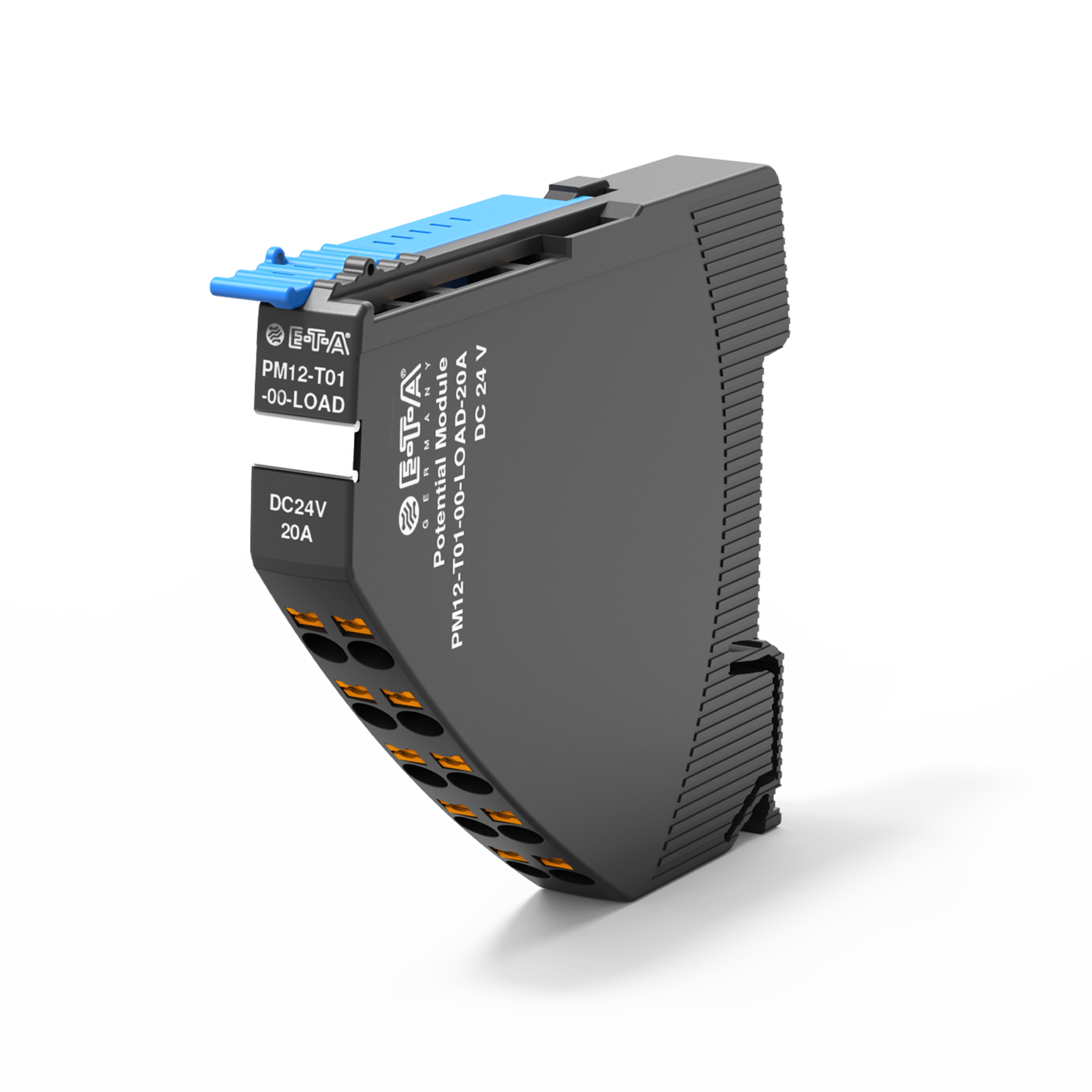

  • Saves space through a slim design of the circuit protectors and the potential modules
  • Increases flexibility of system planning through many different modules meeting the demands of DC24V power distribution

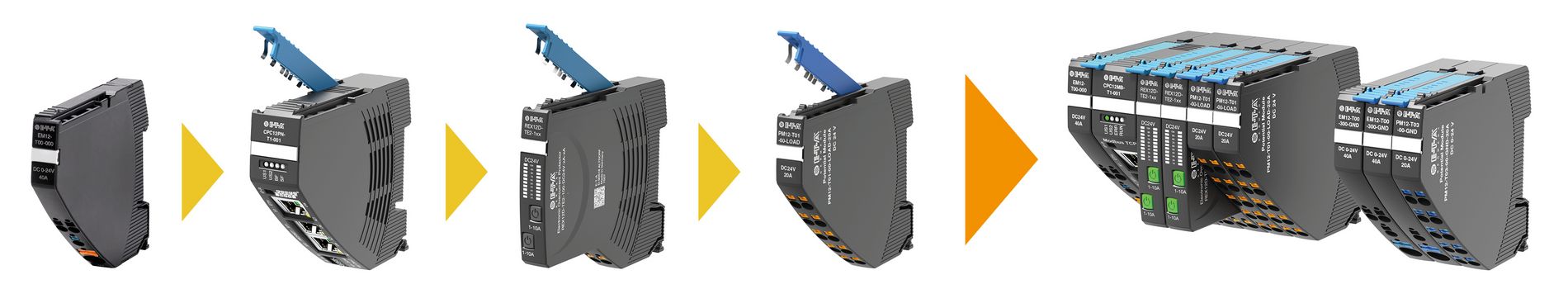

The system
