Type X3120

Description

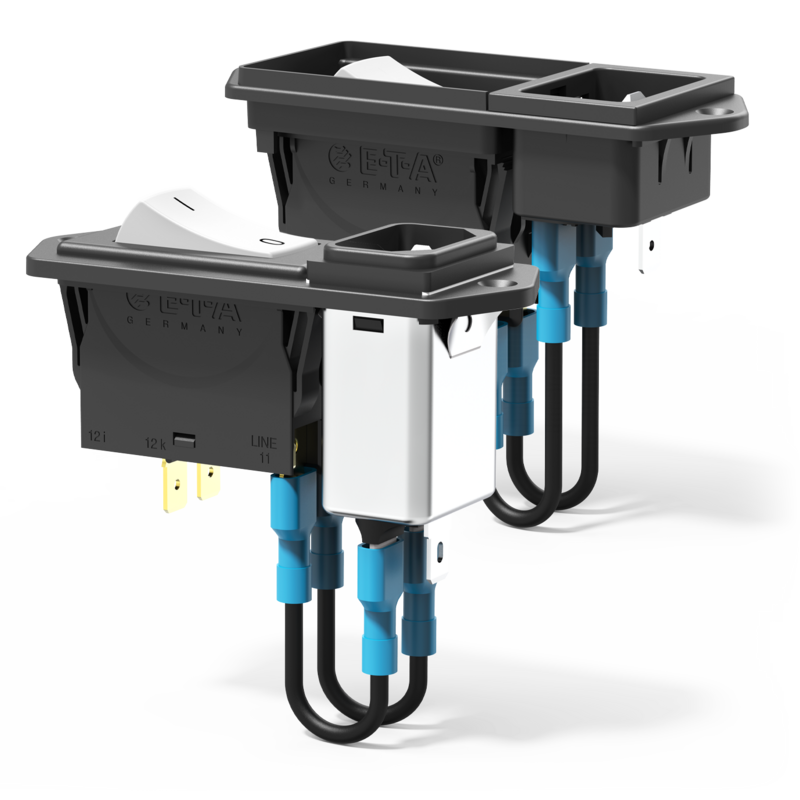

With the X3120 A/B power entry modules, up to 5 functions can be combined in one component to save space: a C14/C20 appliance inlet, an on/off switch, a resettable overcurrent protection, a line filter and optionally an undervoltage release/remote release/auxiliary switch. Appropriate line filters can be selected for the use in medical equipment applications according to IEC/EN60601-1. Thanks to screw mounting, the power entry module has a firm fit in the housing.

The power entry module can be combined with 3120-N5... circuit breakers (see data sheet for more details).

Technical Data

Voltage rating	AC 250 V
Current ratings	C14: 10 A (IEC/EN) C20: 16 A (IEC/EN)
Actuation	push button rocker
Terminal design	blade terminals
Certificates	Approvals appliance inlet: VDE/TÜV, UL, CSA
