Type X4230-A
81 mm
9 mm
Description

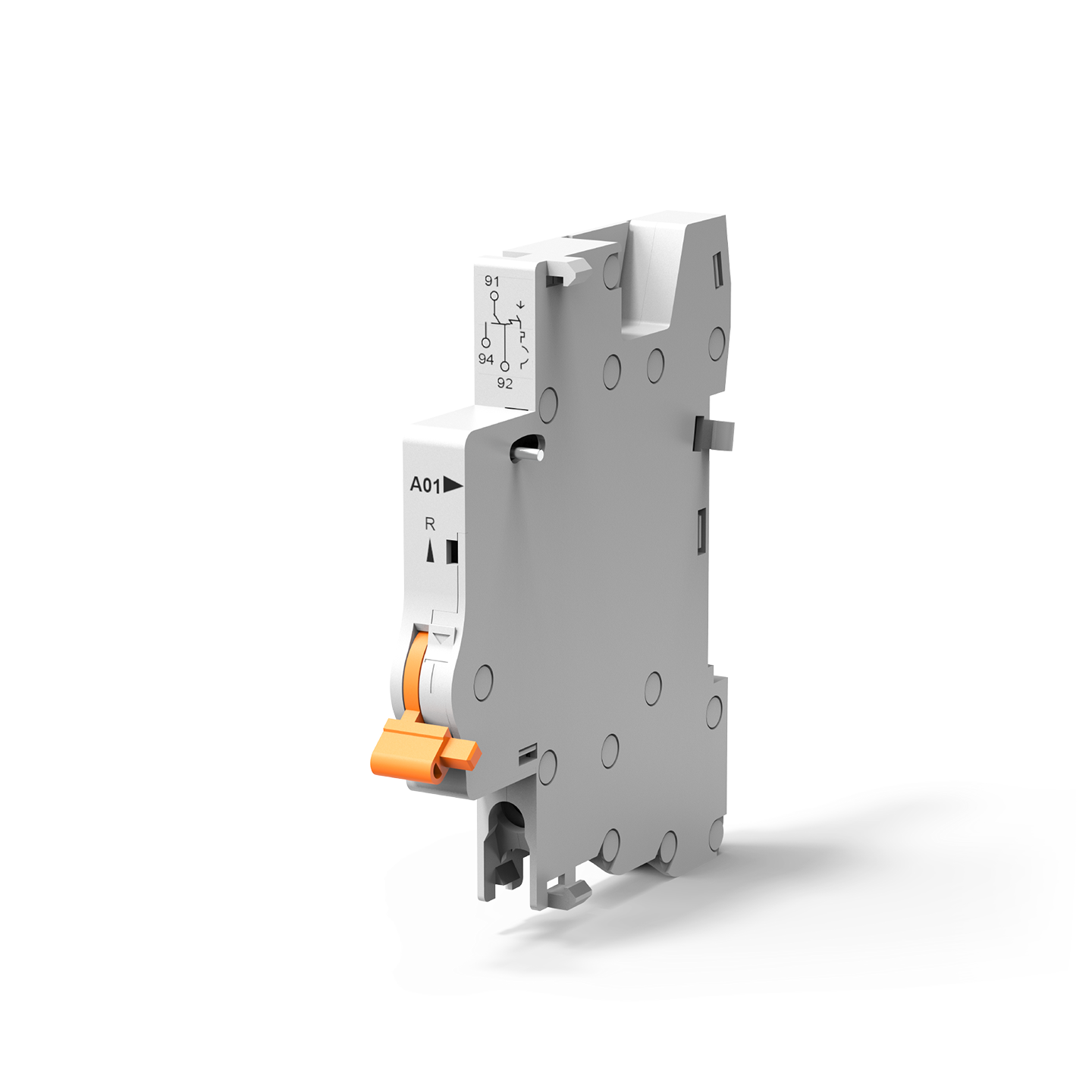

Add-on module for 4230-T circuit breaker. The error signal switch has a change-over contact as signal contact. An error message is only issued if the circuit breaker has tripped due to a fault (overload, short circuit), but not if the switch is actuated manually. The pending tripping signal can be acknowledged by pressing the reset lever at the front.
Technical Data
| Nennspannung | AC 240…415; DC 24…130 |
|---|---|
| Nennstrom | 1…6A |
| Polzahl | single pole |
| Montage | rail mounting |
| Anschlüsse | screw terminals |
| Betätigung | toggle/baton |
| Hilfskontakte | |
| Spritzwasserschutz | |
| Beleuchtung | |
| Lebensdauer | 20.000 |
| Schaltvermögen Icn | |
| Certificates | UL 489 |
Applications
- Automation
- Chemical, Oil & Gas
- Mechanical engineering
- Telecom & Datacom
