Medical equipment: Perfect overcurrent protection

Reliable electrical medical equipment and machines is the basic requirement for successful work in the operating rooms, on the wards or also in the laboratories. Safety and quality must not be compromised. This is particularly true for the protection of devices and machines in the event of overcurrents.

E-T-A’s circuit breaker/switch combinations reliably disconnect hazardous overcurrents. They help to increase the availability and life of medical equipment, and they also reliably protect doctors, nurses and patients against the hazards of overheated devices.

Your benefits:

  • Reduced mounting and wiring time
  • Reduced disposition and storage costs
  • Space-saving design

International approvals:

E-T-A circuit breakers carry international approval marks and meet the requirements of the EN 60 601-1 standard for medical electrical equipment. Therefore many of E-T-A’s circuit breaker/switch combinations are available as a »2-pole switching, 2-pole protected« version. They can be used, in compliance with the relevant standard, with functional earth connection in electrical medical equipment of protection class I and protection class II.

Typ 3120 or typ X3120 – a wealth of options:

E-T-A’s 3120 is an ON/OFF switch with integral overcurrent protection, i.e. It unites two function in a single component.

  • 1- and 2-pole versions
  • Current rating range: 0.1 ... 20 A
  • Voltage: AC 240 V, DC 50 V

E-T-A’s X3120 has an additional IEC inlet plug and can optionally be supplied with a line filter.

  • C14 or C20 appliance inlet
  • Standard and high performance line filters
  • Special line filters for medical equipment (with low leakage current)

more info

More products especially for medical equipment:

  • Typ 3130 or typ X3130 series - for fewer parts and more functionalities

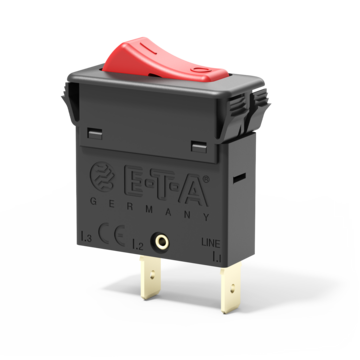

    Typ 3130 or typ X3130 series - for fewer parts and more functionalities

    Single, double or three-pole thermal circuit breaker/switch combinations for snap-in mounting with current ratings up to 20 A.

    Besides its basic function as a thermal circuit breaker, the compact 3130 also serves as a reliable ON/OFF switch for devices and machines.

    • Cost savings
    • Time savings
    • Space savings

    X3130 circuit breaker/switch combination with additional IEC inlet plug C14.

    more info

  • Typ 1410-F – for a fast trip performance

    Typ 1410-F – for a fast trip performance

    1410-F: Single pole thermal resettable circuit breakers for threadneck panel mounting, integral or pcb mounting with current ratings up to 10 A.The 1410 series has a snap action mechanism preventing contact wear and ensuring a long life-span.

    • Cost-effective overcurrent protection
    • Limited downtime
    • Extremely space-saving design

    more info

  • Typ 1110 – for small spaces

    Typ 1110 – for small spaces

    The 1110 is a thermal circuit breaker combining overcurrent protection with ON/OFF function for devices and machines. Upon request it also available in a purely reset version.

    Its ultra-slim design makes the 1110 ideal for replacing closed vertical fuse holders.

    • Cost savings
    • Time savings
    • Space savings

    more info
