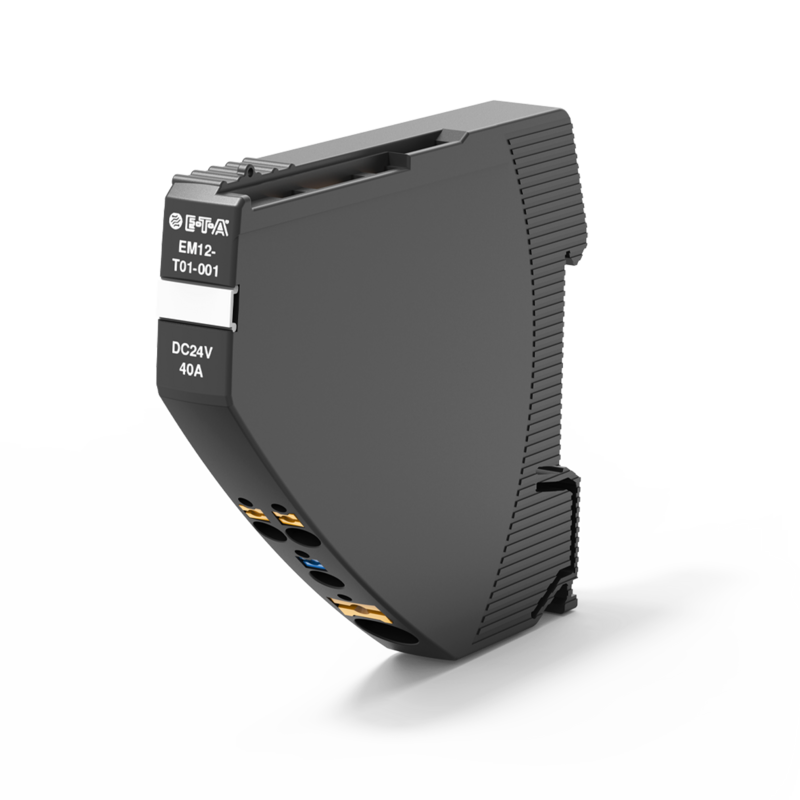

Type EM12-T (DC 24 V)

Description

Data sheet

The EM12-T supply module takes the DC 24 V supply voltage, e.g. from a switch mode power supply unit, and distributes it to the mounted REX12-T / REX12D-T / REX22D-T circuit protectors via the integral connector arm. The potential-free Si auxiliary contact in the EM12-T indicates errors and faults detected by the circuit protectors, e.g. to a superordinate control unit (CPU).

The supply modules are always installed at the first position of a REX system structure. This can either be the left-hand side of the first circuit protector or, if connected to the prevailing bus system, the left-hand side of the CPC12 ControlPlex® bus controller.


Applications

  • Mechanical engineering
  • Automation
  • Process industry

Technical Data

Rated voltage DC 24 V (18…30 V)
Rated current 40 A
Ambient temperature -30 °C ... +60 °C
Mounting method rail mounting
Certificates UL 2367, UL 508 listed, CSA C22.2 No. 14, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA
