Type 2-5700

~ 79 mm

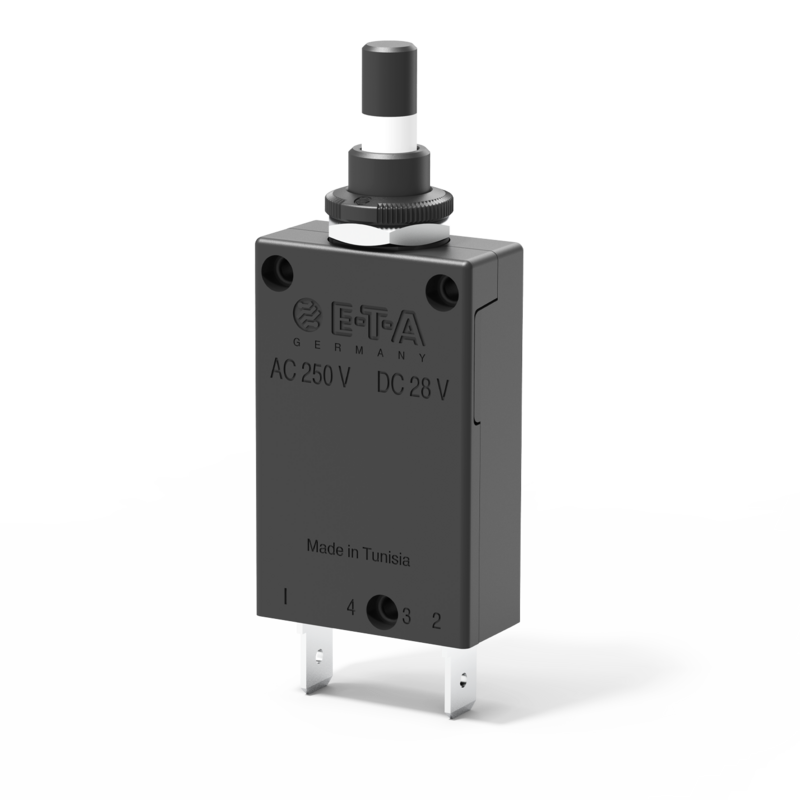

Typ 2-5700 von E-T-A: Einpoliger, thermischer Schutzschalter mit verschiedenen Montagemöglichkeiten.

Description

Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism. Type 2-5700 can be supplied as a push-push switch/circuit breaker (R-type TO CBE to EN 60934 in press-to-reset configuration; S-type with push-push operation), threadneck panel mounting. Options include an additional unprotected circuit tap (-A3).

Approved to CBE standard EN 60934 (IEC 60934).

Technical Data

Voltage rating
  • AC 250 V
  • DC 28 V
  • UL/CSA: DC 50 V
Current ratings from 0,05 A up to 25 A
Number of poles single pole
Mounting method threadneck
Terminal design blade terminals
screw terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 0.05...16 A 5,000 operations at 2 x IN, inductive

17...25 A 5,000 operations at 2 x IN, resistive
Interrupting capacity Icn 0.05...2.5 A: 8 x IN

3...5 A: 20 x IN

6...12 A: 200 A (higher interrupting capacity available to special order)

13...25 A: 400 A
Certificates VDE, CSA, UL, CCC

Accessories

Order number Description
X20079802

splash cover, transparent

X20079901

splash cover, transparent

X20080103

splash cover black with O-ring

X20080108

splash cover transparent with O-ring

X20129601

splash cover black without O-ring

X20129603

splash cover black with O-ring

X21066301

splash cover transparent with knurled nut

X21073901

splash cover black with hex nut

Y30011602

hex nut

Y30019201

hex nut

Y30206501

knurled nut

Y30356301

busbar

Y30711702

knurled nut

Applications

  • Aerospace
  • Automobiles
  • Commercial Vehicles
  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
  • Watercraft & Vehicles
